| Based on Magic RF M100 and Magic RF QM100 Chip, we developed these reference designs to match different application requirements. |
20dBm Reference Design
This design focus on the scene operation range within 1m and its maximum output power is 20dBm(100mW). The key features are very small size, low power consumption and low cost.
Specification
* Frequency range: 840~960MHz
* Protocol: ISO 18000-6C/EPC C1G2
* Power supply: +3.6V ~ +5.5V
* Idle Current: < 10mA
* Sleep Current: < 300uA

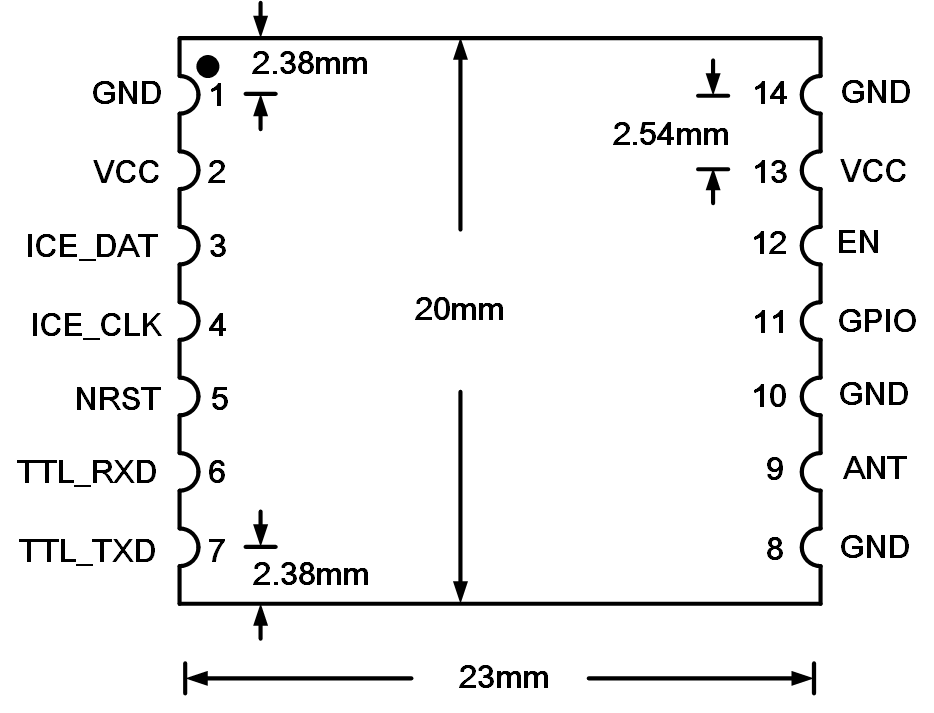

* Size: 23×20×3 (unit: mm)
* Carrier Power: 12.5~20dBm, software configurable, 1.5dB step
* Working Current: Peak Current 160mA @ 20dBm CW
* Typical Read Range: 1m (cleared area, with 25mm×25mm, 1dBi Ceramic Antenna)
* Interface: TTL-RS232(baud rate: 115200bps, dataBits: 8, StopBits: 1, Parity: None, Flow Control: None)
* Work Temperature Range: -25℃ ~ +80℃
|
26dBm Reference Design
This design focus on the scene with medium operation range and its maximum output power is 26dBm. The module size is same with the 20 dBm design.
Specification
* Frequency range: 840~960MHz
* Protocol: ISO 18000-6C/EPC C1G2
* Power supply: +3.6V ~ +5.5V
* Idle Current: < 10mA
* Sleep Current: < 300uA
* Size: 23×20×3 (unit: mm)
* Carrier Power: 19.5~26dBm, software configurable, 1.5dB step
* Working Current: Peak Current 360mA @ 26dBm CW(5V supply)
* Typical Read Range: 3m (cleared area, with 45mm×45mm, 3dBi Ceramic Antenna)
* Interface: TTL-RS232(baud rate: 115200bps, dataBits: 8, StopBits: 1, Parity: None, Flow Control: None)
* Work Temperature Range: -25℃ ~ +80℃
|
Micro UHF Reader
This design is a full functional micro reader with USB interface and USB power supply. It can read and write tags immediately by connecting a PC and an antenna.
The key features are low power consumption, very easy to carry and install.

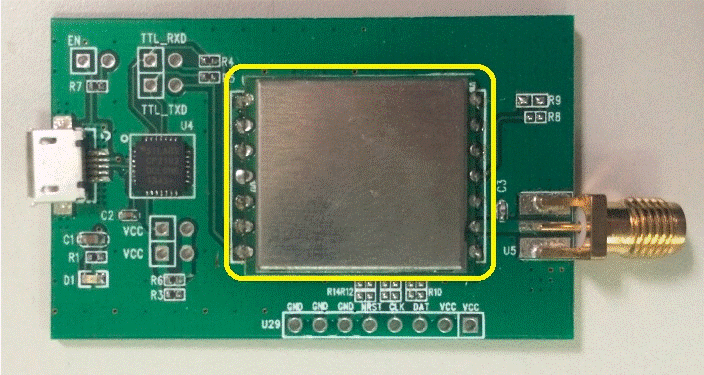

This RFID Reader is designed base on our M126 reader module. The module surround by yellow square is our M126 module.
Specification
* Frequency range: 840~960MHz
* Protocol: ISO 18000-6C/EPC C1G2
* Power supply: +3.6V ~ +5.5V, USB power supply
* Idle Current: < 10mA
* Sleep Current: < 300uA
* Working Current: Peak Current 360mA @ 26dBm CW
* Size: 53 x 33 x 3 (unit: mm), screw hole diameter: 2.5mm
* Carrier Power: 19.5~26dBm, software configurable, 1.5dB step
* Typical Read Range: 3m (cleared area, with 45mm×45mm, 3dBi Ceramic Antenna)
* Interface: USB to Uart, need to install SiliconLab CP210X VCP driver(baud rate: 115200bps, dataBits: 8, StopBits: 1, Parity: None, Flow Control: None).
* Work Temperature Range: -25℃ ~ +80℃
|
|
|
|
